Our production

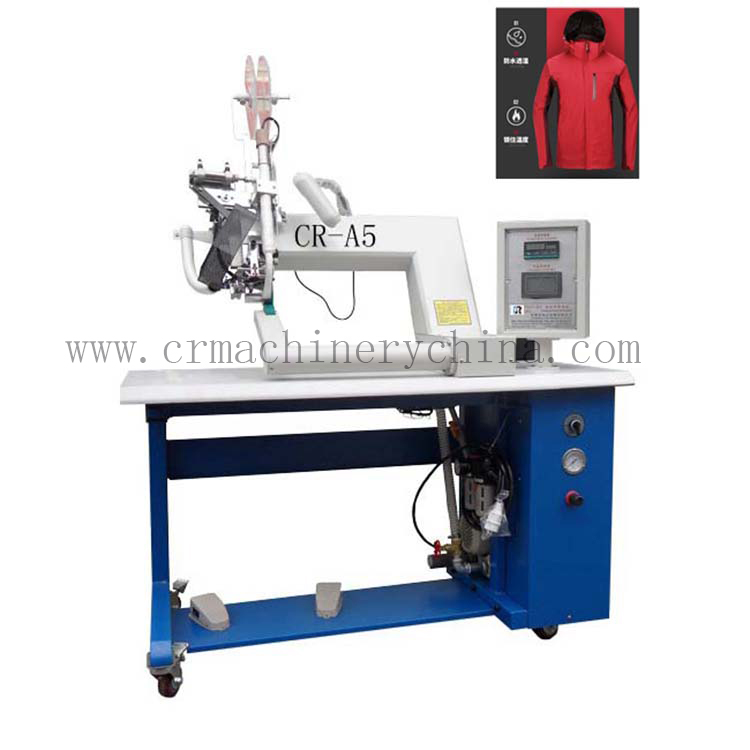

Name:CR-A5 Hot Air Tape Welding Machine CR-A5
Item:Hot Air Tape Welding Machine CR-A5
Voltage:AC220V 50HZ
Power:2800W
Heat Up:Up to 700°C
Speed:1-18m/min
Pressrue:0.35-0.5Mpa
Pinch roller Width:∅65×25mm(Last round)30mm(Next round)
Optional Size of Roller:8-30mm
Dimension:1300/600/1530mm
Net weight:130KG

Products Description

Features:

1.PIC control, touch screen digital display, setting parameters can be adjusted according to your needs.

2.Automatic temperature control, stable operation, temperature accuracy ±1°C, temperature limit design, protection of the heating wire.

3.The upper and lower rollers can adjust the speed difference.

4. Two-foot control, two modes of jog or self-locking can be selected, easy to operate, not easy to be fatigued, and suitable for long-term operation.

5.Independent heating tube control program, shutdown delay function to protect the heating tube.

6.24-hour production to improve production efficiency.

7.Automatic cutting, feeding and sealing to reduce material loss.

8.Adopting stepping motor control, accurate numerical value.

9.Comes with cutting tape function.

10. The horizontal lower arm design is more suitable for producing pockets, buckets, shoes, hats, collars, pants, etc.


Application:

CR-A5 hot air tape welding machine has an L-shaped arm design, which is more suitable for sealing barrel-shaped and cuff-shaped waterproof products, such as jackets, tents, raincoats, protective clothing, etc.
