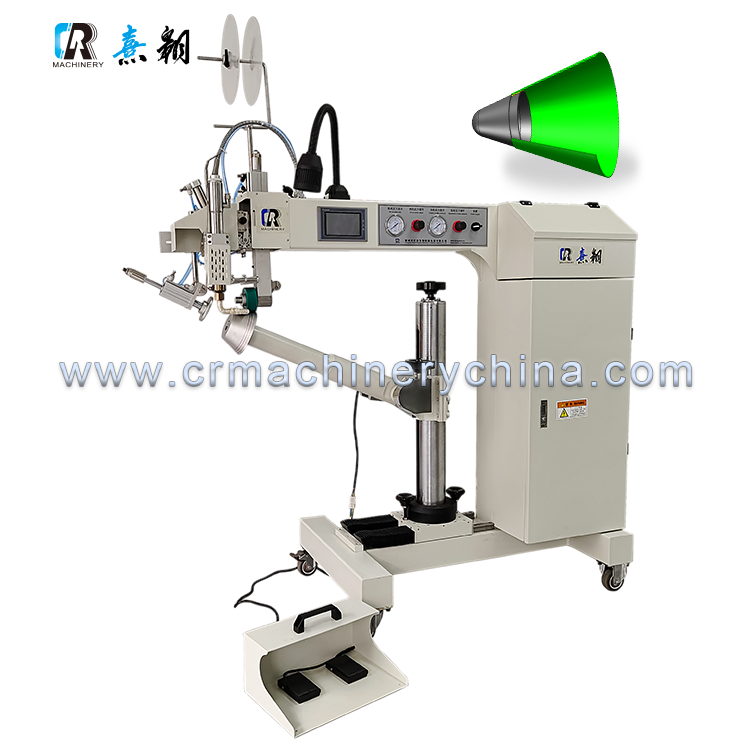

Name:CR-G18 Inflatable Boat Rubber Cone End Welding Machine
Product name:Inflatable boat rubber cone end welding machine
Model:CR-G18
Voltage:AC 220V 50-60HZ
Power:3000W
Heat air control:Up to 750°C
Heat wedge control:Up to 500°C
Speed:1-15m/min
Air Pressure:0.35-0.5Mpa
Roller width:20/30/40/50mm
Nozzle width:20/30/40mm
Hot wedge width:25mm
Dimension:14606001500mm
Gross weight:200kg

Products Description

Description of CR-G18 Inflatable Boat Rubber Cone End Welding Machine

CR-G18 Inflatable boat rubber cone end welding machine suitable to produce all kinds of waterproof product which is made from coated PU, PVC, TPU, PE, PVA, such as Inflatable boat flexible rubber cone end, large inflatable tents, rubber boats, inflatable boats, inflatable swimming pools, balloons, banner, seamless sewing products, and fishing boats, etc.



Feature of CR-G18 Inflatable Boat Rubber Cone End Welding Machine

1. This machine adopts advanced technology and has functions of hot air and hot wedge. Hot air and hot wedge functions can be switched, easy to replace. It can meet various welding requirements of TPU, PVC, PE, PVC mesh cloth, etc.

2. It adopts editable PLC control system, high-definition touch screen display, Chinese and English system, can be programmed according to user requirements, microcomputer automatically controls the whole machine, simple operation, stable action performance, and low failure rate.

3. Auto temperature control with warning device for the up limit temperature.

4. Auto compensation, auto micro back to reduce empty welding.

5. Double pedals control.

6. It could work up to 24 hours continuously.

7. The unique heating structure can reach up to 750℃for hot air, and 500℃ for hot wedge, the temperature is automatically tracked and controlled by a computer, and the accuracy can reach ±1℃.

8. Super strong torsional dynamic design.

9.Blowing-in hot air is filtrated without any water and oil.

10. The hot wedge function is noiseless, energy-saving, environmentally friendly and smoke-free, with strong welding fastness, no wrinkles, and no bright edges.

11. The equipment can set different parameters according to different welding materials, and automatically store them, which is convenient to call and improve work efficiency.

12. The angle of the lower arm is adjustable, suitable for producing rubber boats cone end of different sizes. The lower arm is adjusted to the level and can be used for overlap welding, reinforcement tape welding, hem welding, etc.





Application Products of CR-G18 Inflatable Boat Rubber Cone End Welding Machine

CR-G18 Inflatable boat rubber cone end welding machine suitable to produce all kinds of waterproof product which is made from coated PU, PVC, TPU, PE, PVA, such as Inflatable boat flexible rubber cone end, large inflatable tents, rubber boats, inflatable boats, inflatable swimming pools, balloons, banner, seamless sewing products, and fishing boats, etc.
