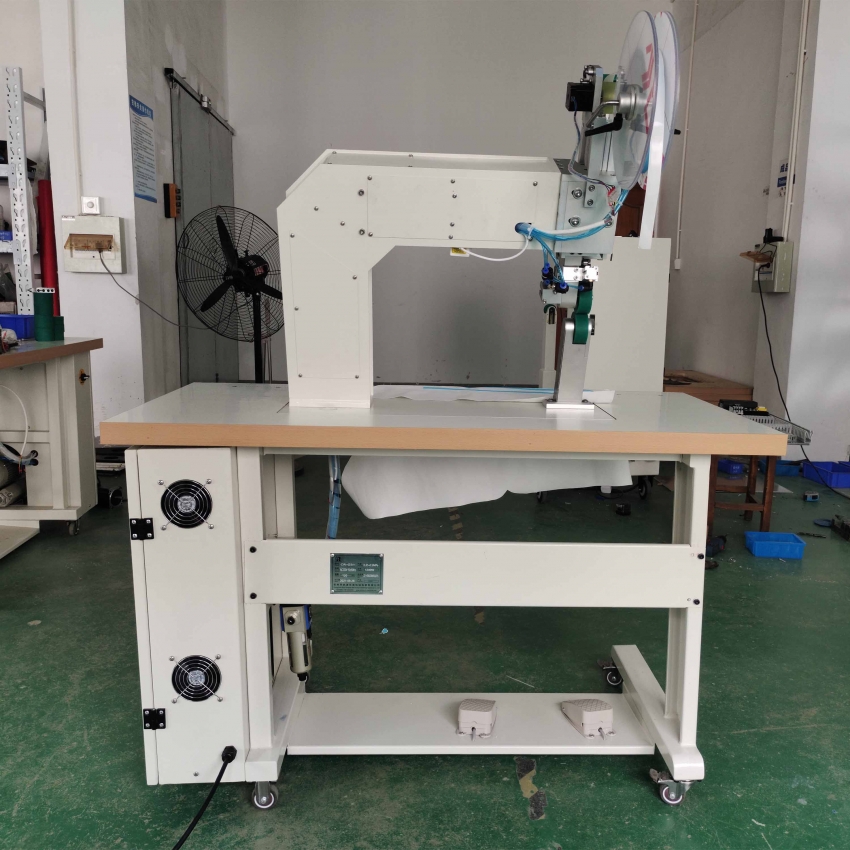

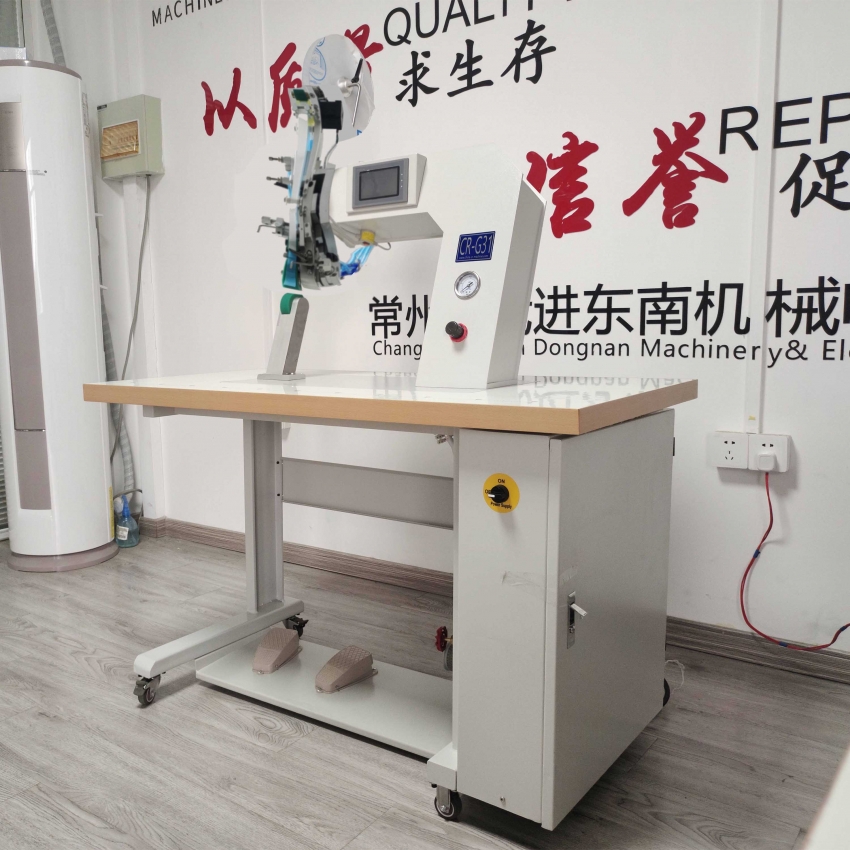

Self adhesive tape taping machine
自粘胶带贴带机
CR-G31
技术规格
Technical Specification
型号Model | CR-A31 |
电压Voltage | AC220V 50-60HZ |
功率Power | 1500W |
速度Speed | 1-24m/min |
压缩空气 Pressure | 0.35-0.5Mpa |
压轮宽度 Roller width | 25mm |
上压轮行程 Upper roller lift | 25-35mm |
可选滚轮 Optional Size of Roller | 8-25mm |
尺寸Dimension | 1300*600*1600mm |
净重Net weight | 160kg |
特点:
1、PLC控制,触摸屏数字显示,设置参数可以根据您的需要进行调整。
2、上下滚轮可调节速差。
3、双脚控制,可选择点动或自锁两种模式,操作简便,不易疲劳,适合长时间操作。
4、24小时生产,提高生产效率。
5、自动剪带,送带和密封,自动限长切割功能节省15%的胶带。
6、采用步进电机控制,数值精确。
7、独特发热管结构,进风经过滤,绝无水分和油分
Features:
1. PLC control, touch screen digital display, setting parameters can be adjusted according to your needs.
2. The upper and lower rollers can adjust the speed difference.
3. Two-foot control, two modes of jog or self-locking can be selected, easy to operate, not easy to be fatigued, and suitable for long-term operation.
4. 24-hour production to improve production efficiency.
5. Automatic cutting, feeding and sealing to reduce material loss, Auto limited tape length cutting function saves 15% tape.
6. Adopting stepping motor control, accurate numerical value.
7. Blowing-in hot air is filtrated without any water and oil
应用:
防护服、防水夹克、帐篷、车罩等。
Application:
protective clothing, waterproof jacket, tents, car covers, etc.
