Our production

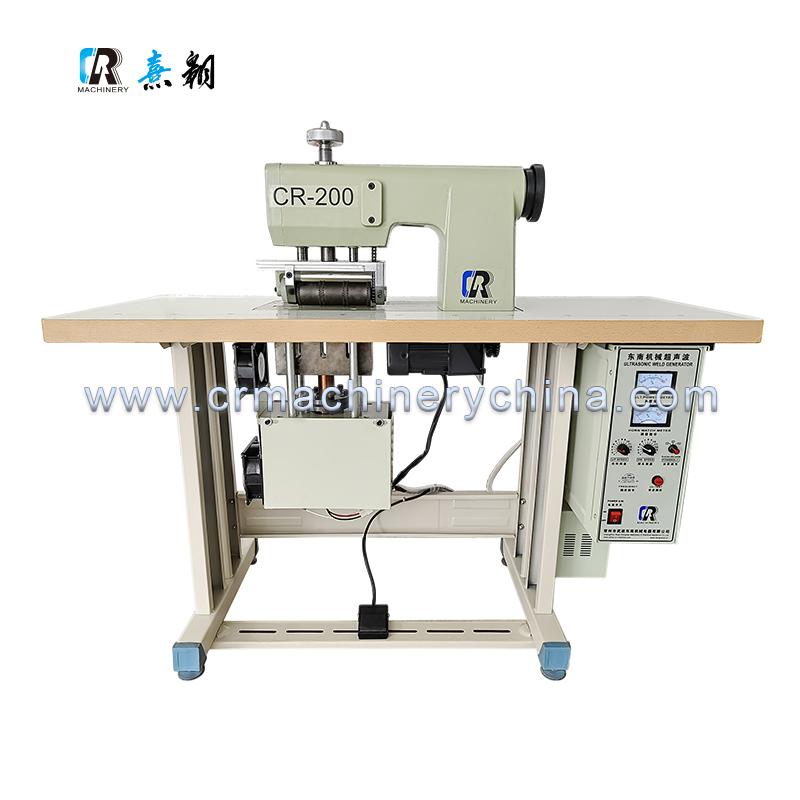

Name:Ultrasonic Lace Sewing Machine CR-200
Item:Ultrasonic Lace Machine
Model:CR-200
Power Source:220V 50-60HZ
Input Power:1500W
Output Frequency:20KHZ
Working Speed:0-25M/Min
Roller Size:100MM-200MM
Dimension:127/63/128CM
Gross Weight:120KG
Working Temperature:-10℃-28℃

Products Description

Functions:

1.The operations of side scraping and trimming The side scrap in one side and side melting can be carried out at the same time. It makes the side smooth, no roughness and no coarse side.

2.Make holes The holes with different patterns can be cut and the treatment of side melting can be carried out too.

3.Transfer printing Two layers or multi-layers can be melted together. It is not necessary to use thread and needle. This process can replace sewing. Moreover the melted strength is excellent.

4.Cut Material This machine can cut material for single piece or many pieces at one time. Moreover it can carry out the treatment of side melting. There is no coarse side. 5.Forming at one time the process of cutting, hole breaking and patter printing can be carried out.


Suitable material:

composite material, thermoplastic film and plastics slice, such as chemical fibric.


Application: The ultrasonic lace machine CR-200 is suitable for making protective clothing, masks, etc.
